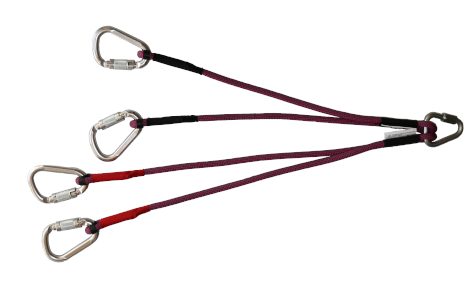

Garda standard sling

  • 4 rope strands 10.5 mm (2×2) connected to a delta link.
  • 4 automatic locking aluminium carabiners.
  • Strand dimensions without carabiners :
    front : 70 cm / rear : 60 cm
Reference Designation Weight Resistance
PFFG011 Garda Standard sling 800 g 2200 kg

Garda angular sling

  • 4 rope strands 10.5 mm (2×2) connected to a delta link.
  • 4 automatic locking aluminium carabiners.
  • A 5th strand allows the stretcher to be winched in a oblique position. A halyard carabiner allows easy passage from oblique to flat position.
  • Strand dimensions without carabiners : 77 cm
Reference Designation Weight Resistance
PFFG012 Garda angular sling 880 g 2200 kg

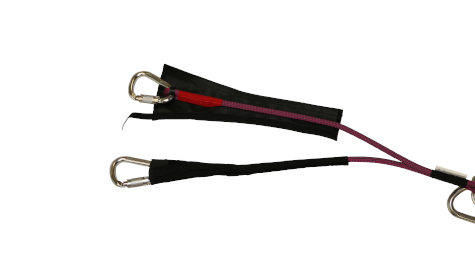

Protective set for slings

  • Durable fabric parts to cover and preserve slings when used in aggresive enviroments.
  • Fastening by velcro.
Reference Designation Weight Resistance
PFFG025 Protective set for slings (4p) 880 g 2200 kg

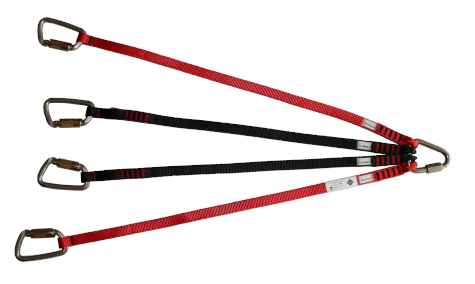

Dual sling land and sea

4 strands of 19 mm strap (4X1) connected to a delta link wich allow a better balance between the stretcher and the rescuer during a tandem winching on an interface.

The positioning of the carabiners on the rear strands is adjustable (60 or 65 cm) to correct the plate of the stretcher according to the weight and the distribution of the load.

4 automatic locking stainless steel carabiners.

Dimensions of the strands without carabiners : front: 70cm / rear: 60 et 65 cm.

Reference Designation Weight Resistance
PFFG041 Dual sling 1140g 2850kg

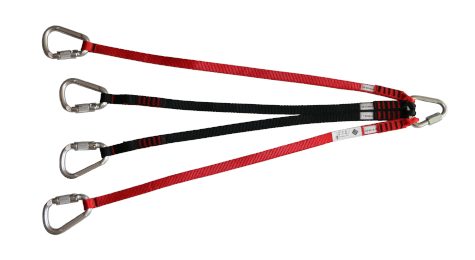

Land sling ( non saline environment)

4 strands of 19 mm strap (4X1) connected to a delta link which allow a better balance between the stretcher and the rescuer during a tandem winching on an interface.

The positioning of the carabiners on the rear strands is adjustable (60 or 65 cm) to correct the plate of the stretcher according to the weight and the distribution of the load.

4 automatic locking aluminium carabiners.

Dimension of the strands without carabiners : front: 70cm / rear: 60 et 65 cm.

Reference Designation Weight Resistance
PFFG042 Land sling 740g 2850kg

Standard carrying bars L150

Standard carrying set including 4 heavy-duty aluminium bars, supplied with transport cover.

Reference Designation Weight Folded length Maximum load
PFFG031 Barres de portage standard L150 6.3kg 150cm 150kg

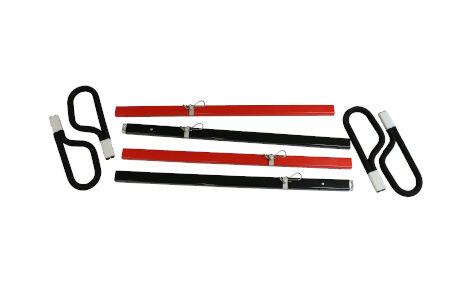

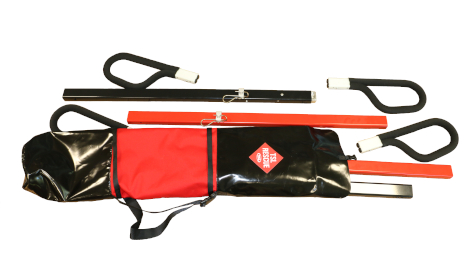

L150 compact carrying bars with comfort handles.

Compact package including, 4 heavy-duty aluminium bars, 4 comfort handles.

Reversible position of the handles according to the slope or size of the carriers.

Supplied with transport cover.

Reference Designation Weight Folded length Maximum load
PFFG045 Barres de portage compact L105 6,3kg 105cm 150kg

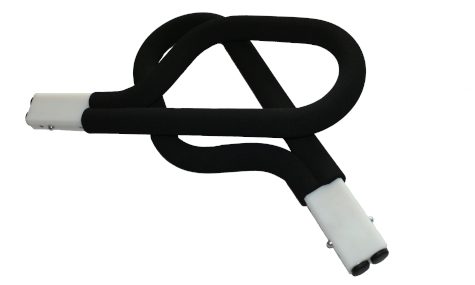

Handle for carrying bar

Removable and reversible handle for L105 carrying bar compact.

Customizable on standard carrying bars. Contact TSL RESCUE customer service for details.

Solid individually.

Reference Designation Weight
PFFG044 Handle for carrying bar 380g

Carrying Hook

Hook carrying harness, Designed for porterage with handles and carrying harness.

Reference Designation Weight
PFFG047 Carrying hook 54g

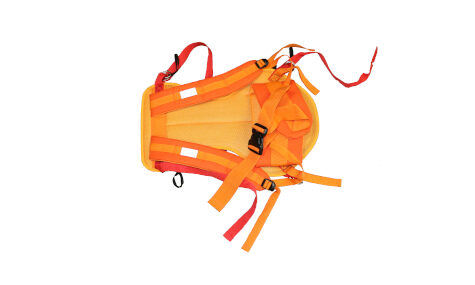

Carrying harness

Specially designed harness for easy stretcher carrying with the standard bars L 150 by two people.

Also allows the folded stretcher and the wheel to be carried.

Reference Designation weight
PFFG017 Carrying harness (unit) 800g

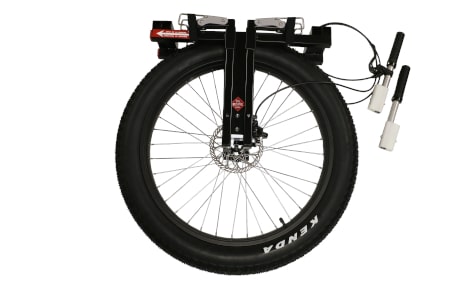

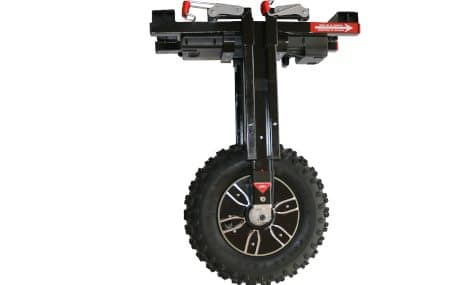

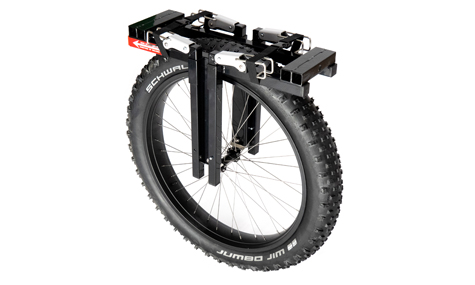

Mono-roue

The mono-wheel must be used with the PFFG031 or PFFG045 carrying system, it attaches to the carrying bars and relieves the rescuers’ efforts. The mono-wheel is made up of a tubular aluminum frame, on which four mounting brackets slide. For attaching the mono-wheel to the stretcher, these brackets are fitted with fixing hooks.

The wheel used is of large diameter, to facilitate transport even on very uneven paths. This wheel is fixed on an oscillating arm, to increase the comfort of the wounded.

After the fixing brackets are installed on the frame, the wheel is placed under the stretcher with the injured person conditioned therein.

Reference Designation weight
PFFG028 weight 4.5kg

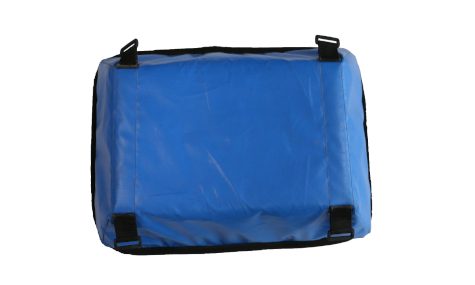

Canyoning float

Light and compact model, keeps the stretcher on the surface of the water and keeps the upper body out of the water.

High density foam covered with PVC fabric.

Reference Designation Weight Volume buoyancy value
PFFG019 Flotteur canyoning 380g 9,8dm3 92N

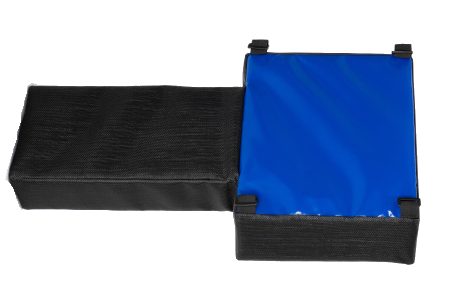

Sea float

High performance float attached to the inside of the cover ensuresthe turning and straightening of the stretcher in less than 5 seconds.

Can be used at sea in bad weather.

High density foam covered with mesh fabric.

Reference Designation Weight Volume Buoyancy value
PFFG046 Flotteur mer 1100g 19,2dm3 173N

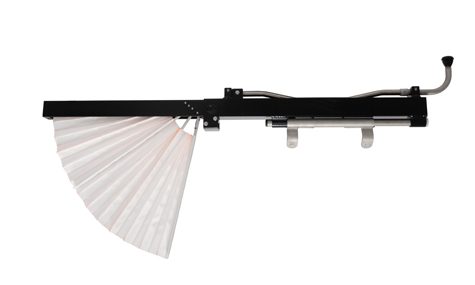

Anti-rotation rudder

Allows you to guide the Franco Garda stretcher under an helicopter.

Avoids untimely rotation of the stretcher.

Easily used like a boat rudder.

Can be positioned quickly to the right or left of the stretcher depending on the position of the winch.

Retractable for the entry of the stretcher into helicopter.

Reference Designation Weight
PFFG013 Dérive anti-rotation 3,2kg

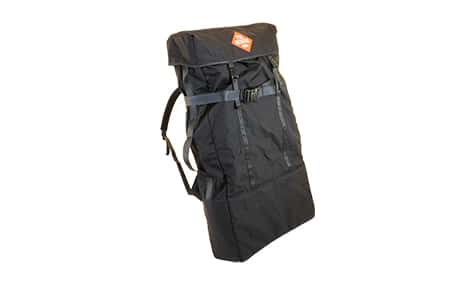

Stretcher portage backpack

Backpack for storage and transport of the folded Franco Garda stretcher.

Quilted back.

Wide padded and adjustable straps.

Reference Designation Weight
PFFG039 Sac à dos de portage brancard 1.6kg

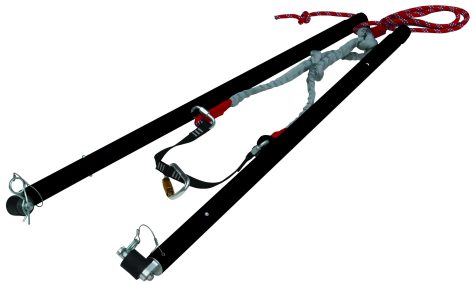

Ski guidance

Guide assembly, supplied with carrying case, comprising:

2 telescopic arms fitted with rope brakes and flexible ball joints to facilitate guidance.

2 aluminium rails that can be added to the rear of the stretcher to improve support on slopes.

Reference Designation Weight Folded length Unfolded length
PFFG016 Ski guidance with rails 4,6kg 105cm 173cm
PFFG030 Ski guidance without rails 4,6kg 105cm 173cm

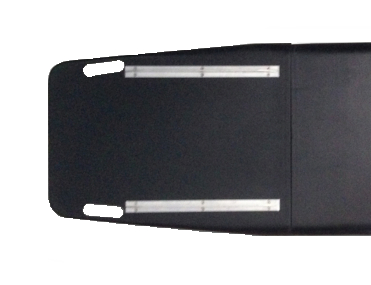

Guidance rails

2 side rails settling on the rear part, supplied with fixing screws.

Reference Designation
PFFG015 Set of 2 guidance rails

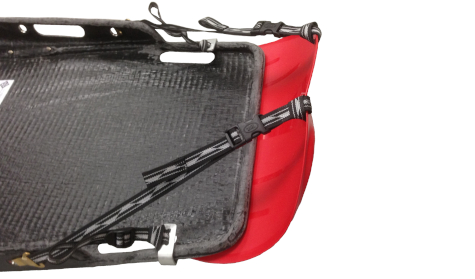

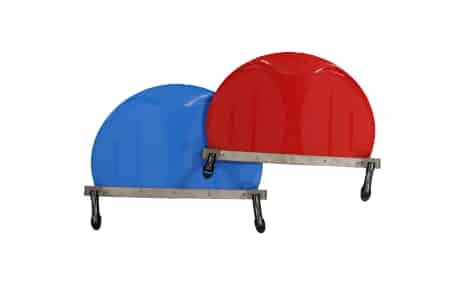

Franco Garda rear shovel

Flexible shovel settling on the rear part, allowing the stretcher to slide in reverse position (head up).

Reference Designation Dimensions Weight
PFSP001 Spatule arrière Franco Garda 44X29cm 430g

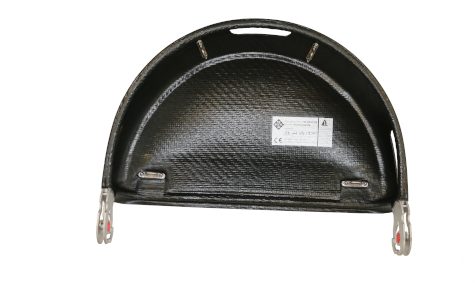

Front shell

Composite front shell (twintex), on 316L stainless steel frame: 54cm * 40cm.

Reference Designation weight
PFFG007 Front shell only 2,5kg

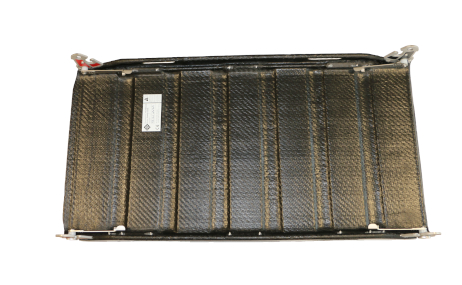

Central shell

Composite central shell ( twintex), on 316L stainless steel frame: 54cm * 105cm.

Reference Designation Weight
PFFG008 Central shell 6,1kg

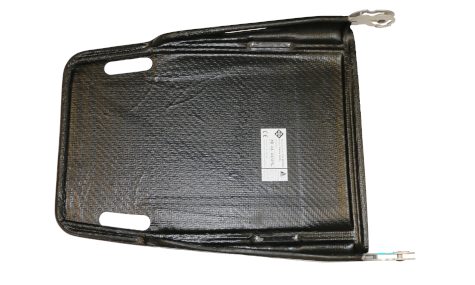

760mm rear shell

Composite rear shell (twintex), on 316L stainless steel frame: 54cm * 76mm.

Reference Designation Weight
PFFG010 760mm rear shell only 2kg

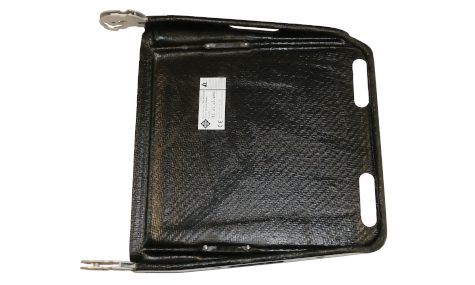

610mm rear shell

Composite rear shell (twintex), on 316L stainless steel frame: 54cm * 61cm.

Reference Designation Weight
PFFG009 610mm rear shell only 1,8kg

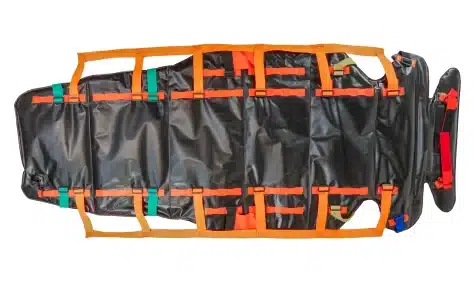

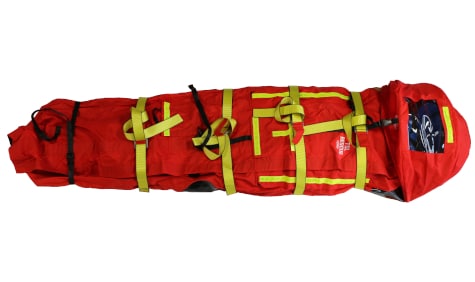

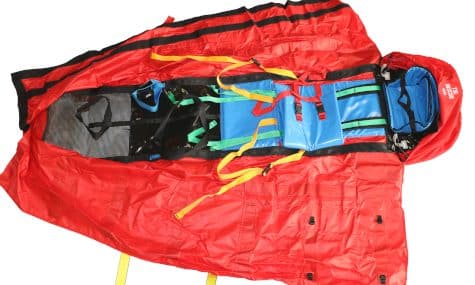

Medicalization cover

The medicalization cover includes a complete device to immobilize the injured person:

-padded chest support flaps.

-closed cell comfort mattress.

-quick access pockets to the upper and lower limbs of the injured person.

-location dedicated to an oxygen bottle with direct access.

-adjustable head support (PFG020).

-reinforced shoulder straps.

-immobilization of the feet.

-4 outer straps (PFFG021).

-allows the use of a vacuum mattress and a hard plane.

Reference Designation Weight Dimensions Material
PFFG005 Franco Garda medicalization cover 3kg 210 X 58cm PA 235 et PE1000 DTEX

Franco Garda headrest

Washable spare headrest with zipper and velcro fastening.

Reference Designation Weight
PFFG020 Têtière Franco Garda 250g

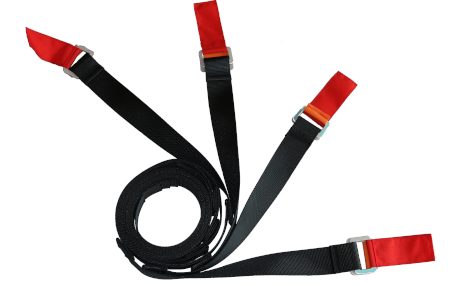

External strap

Strap with double aluminium buckle and release tab.

Reference Designation Length
PFFG021 External black strap 187cm
PFFG049 External yellow strap 187cm

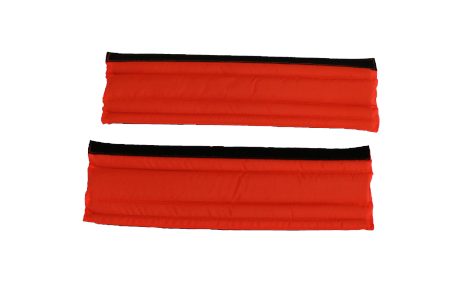

Comfort sleeves.

Foam sleeves for thigh strap (pair).

Reference Designation Length
PFFG022 Manchon de confort 39cm
