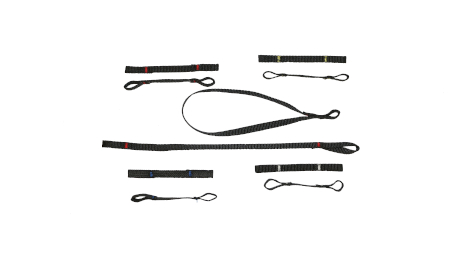

Fuses.
The Hi-Line contains two 35 kg / 100 mm yellow fuses, two 100 kg / 100 mm red fuses, one 100 kg / 200 mm red fuse and one 100 kg / 300 mm red fuse.
It also contains a fuse kit including the fuse sets mentioned above.
There are other fuses available as spare parts and you can also order custom-made ones.
| Reference | Designation | Thread color |
|---|---|---|
| PFCO001 | 200kg/100mm fuse | Green |
| PFCO002 | 100kg/100mm fuse | Red |
| PFCO003 | 70kg/100mm fuse | Blue |
| PFCO004 | 35kg/100mm fuse | Yellow |
| PFCO005 | 100kg/300mm fuse | Red |
| PFCO006 | 100kg/200mm fuse | Red |
| PFCO007 | 60kg/100mm fuse | White |
Mixed extender kit.
Extender kit including :
-A halyard carabiner.
-A 35 kg/ 100 mm fuse.
-A 100 kg/ 300 mm fuse.
-A stainless steel shackle.
-A 50 cm mixed extender.
| Reference | Designation | Dimension |
|---|---|---|
| PFSG002 | Mixed extender kit | 65cm |
Bag fastener kit.
Kit including:
-A halyard carabiner.
-A 35 kg/ 100mm fuse.
-A stainless steel shackle.
| Reference | Designation | Dimension |
|---|---|---|
| PFSG003 | Bag fastener kit | 20cm |
Stretcher bottom kit.
Kit including:
-A hayard carabiner.
-A 100 kg/ 200mm fuse.
| Reference | Designation | Dimension |
|---|---|---|
| PFSG004 | Stretcher bottom kit | 26 cm |
Heaving line kit.
Kit including:
-A 10 m heaving line.
-A monkey’s fist.
-A stainless steel shackle.
| Reference | Designation | Dimension |
|---|---|---|
| PFSG007 | Heaving line kit | 10.2m |
Monkey's fist.
Lead ballast and polyester rope.
| Reference | Designiation | Diameter |
|---|---|---|
| MPSG001 | Monkeys fist | 6 cm |
10 meters heaving line.
Braided polypropylene rope.
| Reference | Designation | Dimensions |
|---|---|---|
| MPSG002 | Touline 10 m | 10 m x Ø 6 mm |
Extenders.
Made of stainless steel cable with stainless steel ends and conical copper sleeves.
| References | Designation | Resistance |
|---|---|---|
| MPSG005 | 180 cm sea extender | 919 daN |
| MPSG006 | 50 cm mixed extender | 919 daN |
Halyard carabiner.
17.4 Ph stainless steel carabiner with free rotation and quick opening.
| Reference | Designation | Resistance |
|---|---|---|
| MPSG008 | L90 halyard carabiner | 3.800 kg |
| MPSG009 | L70 haylard carabiner | 1.600 kg |
50 m Guidance Rope.
Static and floating rope, with reflective strand.
One end with sewn loop.
| Reference | Designation | Dimensions |
|---|---|---|
| MPSG 004 | 50 m guidance rope | 50 m x Ø 14 mm |
Hi - Line bag only.
The TSL Rescue Hi-Line bag ( empty ) only.
| Reference | Designation | Weight |
|---|---|---|
| SFSG 001 | Hi-line bag only | 1.300 kg |
Quick delta link.
Delta quick link Ø4mm made out of 316L stainless steel.
| Reference | Designation | Resistance |
|---|---|---|
| MPSG010 | Ø4 quick delta link | 1000kg |

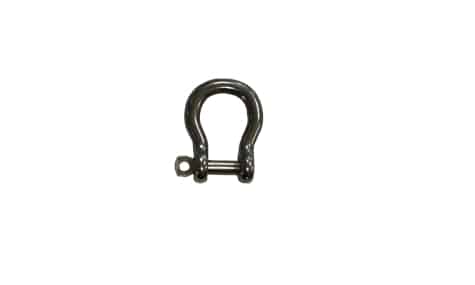

Diam 5 stainless shackle.
Shackle with captive pin in 316L stainless steel.
Locking of the head of the pin by notches of the body of the shackle.
| Reference | Designation | Dimensions | Resistance |
|---|---|---|---|
| MPSG015 | Ø5 stainless shackle | 23mm (A) 10mm (B) | 1500kg |
Fuse kit.
Replacement kit including fuses contained in a guide bag:
-2 fuses 35kg/ 100mm: PFCO004
-2 fuses 100kg/ 100mm: PFCO002
-1 fuse 100kg/ 200mm: PFCO006
-1 fuse 100kg/ 300mm: PFCO005
| Reference | Designation | Quantity |
|---|---|---|
| PFSG008 | Fuse kit | 6 |
